Kidde model 29D, 29HD

Photoelectric Smoke Alarm User Guide

For 9 Volt Battery Operated Smoke Alarm

Thank you for purchasing this smoke alarm. It is an important part of your family's home safety plan. You can trust this product to provide the highest quality safety protection. We know you expect nothing less when the lives of your family are at stake.

Please take a few minutes to read this user guide and save it for future reference. Teach children how to respond to the alarms, and that they should never play with the unit.

Attention: Please take a few minutes to thoroughly read this user guide which should be saved for future reference and passed on to any subsequant owner.

Do not try to repair the smoke alarm itself. Refer to the instructions in Section 9 for service.

WARNING!

UNIT WILL NOT ATTACH TO MOUNTING PLATE UNLESS BATTERY IS PRESENT. REMOVAL OF BATTERY WILL RENDER TH SMOKE ALARM INOPERATIVE.

IMPORTANT!

READ ALL INSTRUCTIONS BEFORE INSTALLATION AND KEEP THIS USER GUIDE NEAR THE ALARM FOR FUTURE REFERENCE.

CONTENTS OF THIS MANUAL

1. RECOMMENDED LOCATIONS FOR SMOKE ALARMS
2. LOCATIONS TO AVOID
3. INSTALLATION INSTRUCTIONS
4. OPERATION AND TESTING
5. HUSH CONTROL FEATURE
6. MAINTAINENCE
7. LIMITATIONS OF SMOKE ALARMS
8. GOOD SAFETY HABBITS
9. WARRANTY/SERVICE

RECCOMMENDED LOCATIONS FOR ALARMS

• Locate the first alarm in the immediate area of the sleeping rooms. Try to protect the exit path as the sleeping rooms are usually farthest from the exit. if more than one sleeping area exists, locate additional alarms in each sleeping area.
• Locate additional alarms to protect any stairway as stairways act like chimneys for smoke and heat.
• Locate at least one alarm on every floor level.
• Locate an alarm in every sleeping room
• Locate and alarm in every room where electrical appliances are operated (i.e. portable heaters or humidifiers).
• Locate an alarm in every room where someone sleeps with the door closed. The closed door may prevent the alarm from waking the sleeper.
• Smoke, heat and combustion products rise to the ceiling and spread horizontally. Mounting the smoke alarm on the ceiling in the centre of the room places it closest to all points in the room. Ceiling mounting is preferred in ordinary residential construction.
• When mounting an alarm on the ceiling. locate it a minimum of 15cm (6") from the side wall and 60.96 (2 feet) from any inside corner (see Diagram A).
• Install smoke alarms on sloped, peaked, or cathedral ceilingss at or within 0.9m (3ft) of the highest point (measured horizontally). Smoke alarms with ceiling slopes greater than 0.3m in 2.4m (1 foot in 8 feet) horizontally shall be located on the high side of the room. A row of detectors shall be spaced and located within 0.9m (3ft) of the peak of the ceiling measured horizontally. (see DIAGRAM "C")
• Put smoke smoke alarms at both ends of a bedroom hallway or large room if the hallway or room is more than 9.1m (30ft) long.
• Install Smoke Alarms on tray-shaped ceilings (coffered ceilings) on the highest portion of the ceiling or on the sloped portion of the ceiling within 12" (305mm) vertically down from the highest point (see DIAMGRAM "D").

1.

Diagram Key

Living Room

Basement

Bedroom

Hall

Kitchen

Do not place smoke alarm in the red areas.

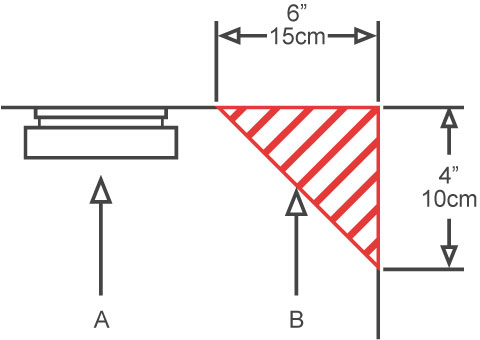

Diagram A

(A) The correct spot for a smoke alarm.

(B) The area on a ceiling where a smoke alarm shouldn't be placed.

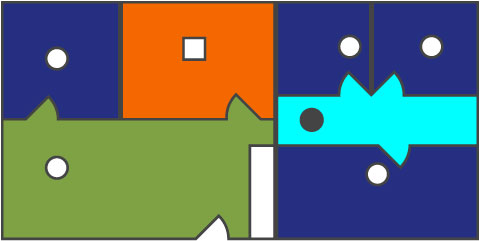

Single Floor Plan

Smoke alarms for limited protection.

Additional smoke alarms for better coverage.

Heat alarms.

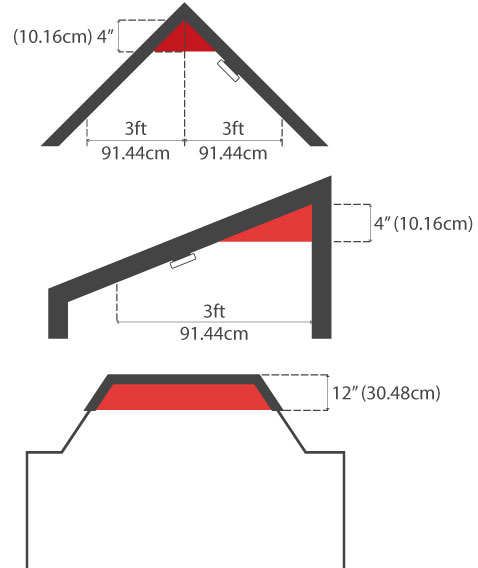

Diagram C

2.

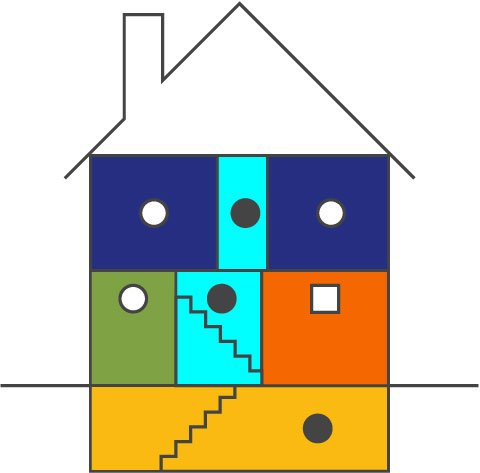

Multi Floor Plan

Smoke alarms for limited protection.

Additional smoke alarms for better coverage.

Heat alarms.

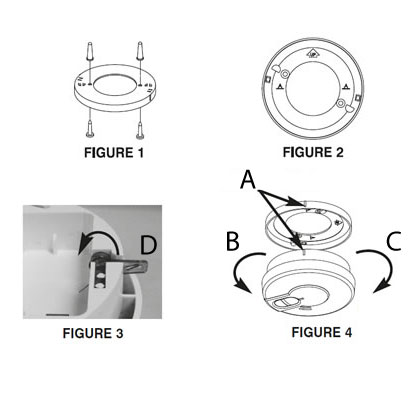

1. Alignment Marks
2. Install
3. Remove
4. Push finger into battery box when installing the battery.

When mounting in a hallway, the "A" line should be parrallel with the hallway (FIGURE 1).

LOCATIONS TO AVOID

• In the garage. Products of combustion are present when you start your car.
• In front of forced air supply ducts used for heating and air conditioning, near ceiling fans, or other high air flow areas.
• Less than 10cm (4") from the peak of 'A' frame type ceiling.
• In an area where the temperature may fall below 0°C or rise above 40°C such as garages and unfinished attics; this should also include electrical boxes exposed to these environments.
• In dusty areas where the relative humidity (RH) is above 93%.
• Near flourescent lights. Electronic "noise" may cause nuisance alarms.
• In insect infested areas.
• Smoke alarms should not be installed within 0.9m (3ft) of the following: the door to a kitchen, the door to a bathroom containing a tub or shower, ceiling or whole house ventilating fans or other high air flow areas.
• Kitchens: Normal cooking may cause nuisance alarms. If a kitchen alarm is desired, it should have an alarm silence feature or be a photoelectric type.
• Smoke alarms are not to be used with detector guards unless the combination alarm and guard has been evaluated and found suitable for that purpose.

NOTE: This model is not suitable for use in recreational vehicles or boats.

3.

INSTALLATION INSTRUCTIONS

CAUTION: THIS UNIT IS SEALED. THE COVER IN NOT REMOVABLE!

1. Remove the mounting plate from the back of the alarm by holding the mounting plate and twist the alarm in the direction indicated by the "REMOVE" arrow see Figure 6.
2. To ensure aesthetic alignment of the alarm with the hallway, the "A" line on the mounting plate should be parallel with the hallway when ceiling mounting.
3. After selecting the proper smoke alarm location as described in Section 1, attach the mounting plate to the ceiling as shown in Figure 4. Use the crews and anchors provided to secure the mounting plate.
4. When installing the battery, press the battery reminder finger down into the battery compartment and install the battery (see Figure 5).

CAUTION! IF THE BATTERY REMINDER FINGER IS NOT HELD DOWN TO THE BATTERY COMPARTMENT BY THE BATTERY, THE UNIT WILL NOT ATTACH TO THE MOUNTING BRACKET.

5. Alignment marks are provided on the edge of the trim plate and the alarm. After installing the mounting plate, place the alarm on the mounting plate with the alignment marks lined up. Twist the alarm in the direction indicated by the "ON" arrow on the alarm cover (see Figure 6) until it locks in place.
6. Tamper Resist Feature: To make your smoke alarm tamper resistant, a tamper resist feature has been provided. Activate the tamper resist feature by breaking out the block in the trim (see Figure 7). When the blocks are broken out, the tamper resist tab is allowed to engage the mounting bracket. Rotate the alarm onto the mounting bracketuntil you hear the tamper resist tab snap into place, locking the alarm on the mounting bracket. Using the tamper resist feature will help to deter children and others from removing the alarm from the bracket. NOTE: To remove the alarm when the alarm when the tamper resist tab is engaged, press down on the tamper resist tab with a screwdriver, and rotate the alarm off of the bracket (see Figure 8).

CAUTION! EARLY WARNING FIRE DETECTION IS BEST ACHIEVED BY THE INSTALLATION OF FIRE DETECTION EQUIPMENT IN ALL ROOMS AND AREAS OF THE HOUSEHOLD AS FOLLOWS:

A SMOKE ALARM INSTALLED IN EACH SEPARATE SLEEPING AREA (see Figure 2 amd Recommended Locations to Install the Alarm) AND HEAT OR SMOKE ALARMS IN THE LIVING ROOM, DINING ROOM, KITCHEN, HALLWAYS, ATTIC, BOILER ROOM, CLOSETS, UTILITY STORAGE ROOM, CELLAR, AND ATTACHED GARAGE.

4.

Key

1. Break.

5.

OPERATION AND TESTING

OPERATION: The smoke alarm is operating once a fresh battery is installed and testing is complete. When products of combustion are sensed, the unit sounds a loud 85db pulsating alarm until the air is cleared.

FLASHING LED LIGHT: This smoke alarm is equipped with a flashing red indicator light. The light is located above the test button and will flash every 30-40seconds to indicate that the smoke alarm is operating.

SMOKE SENSING CHAMBER OPERATION: This alarm will "chirp" if any of the components in the smoke sensing chamber fail. This chirp will occur between the flashes of the red LED indicator light. (if the chirp occurs at the same time as the red led fkash, see Section 6 for low battery information).

TESTING: Test by pushing the test button on the cover and holding it down for a minimum of 5 seconds. This will sound the alarm if the electronic cicuitry, horn and battery are working. If no alarms sounds, the unit has defective batteries or other failure.

TEST THE ALARM WEEKLY TO ENSURE PROPER OPERATION

Erratic or low sound coming from your alarm may indicate a defective alarm that should be returned for service. NOTE: If at any time your alarm fails to operate correctly (erratic or low sound, for example), contact Kidde Safety (see Page 10 for contact details).

NEVER USE AN OPEN FLAME OR COMBUSTIBLE MATERIALS TO TEST YOUR ALARM, YOU COULD DAMAGE THE ALARM OR IGNITE NEARBY MATERIALS AND START A STRUCTURE FIRE.

Smoke alarms are designed to minimize nuisance alarms. Cigarette smoke will not normally set off the alarm, unless the smoke is blown directly into the alarm. Combustion particles from cooking may set off the alarm if the alarm located close to the cooking area. Large quantities of combustible particles are generated from spills or when broiling. Using the fan on a range hood which vents to the outside (non-recirculating type) will also help remove these combustible products from the kitchen.

Model 29HD has a HUSH control that is extremely useful in a kitchen area other areas prone to nuisance alarms. For more information refer to Section 5, Hush Control Feature.

If the alarm does sounds, check for fires first. If a fire is discovered, get out of the building and call the fire department. If no fire is present, check to see if one of the reasons listed in Section 2 may have caused the alarm.

HUSH CONTROL FEATURE

Model 29HD: The HUSH button is extremely useful in a kitchen area or other areas prone to nuisance alarms. The Hush feature has the capability of temporarily desensitizing the smoke alarm circuit for about 10 minutes. This feature should only be used when a known alarm condition, such as smoke from cooking, activates the alarm. If the alarm does sound, check for fires first. If a fire is discovered, get out and call the fire department. If no fire is present, check to see if one of the reasons listed in Locations to Avoid may have cause the alarm. The smoke alarm is desensitized by pushing the Hush button on the smoke alarm cover. If the smoke is not too dense, the alarm will silence immediately and "chirp" every 30-40 seconds for approximately 10 minutes. This indicates that the alarm is in a temporarily desensitized condition. The smoke alarm will automatically reset after approximately 10 minutes. If after this period particles of combustion are still present, the alarm will sound again. The Hush feature can be used repeatedly until the air has been cleared of the condition causing the alarm. Pushing the Test button on the alarm will end the Hush period.

6.

IF THERE IS ANY QUESTION AS TO THE CAUSE OF AN ALARM, IT SHOULD BE ASSUMED THAT THE ALARM IS DUE TO AN ACTUAL FIRE AND THE DWELLING SHOULD BE EVACUATED IMIDIATELY.

NOTE: DENSE SMOKE WILL OVERRIDE THE HUSH CONTROL FEATURE AND SOUND A CONTINUOUS ALARM.

CAUTION: BEFORE USING THE ALARM SMART HUSH FEATURE. IDENTIFY THE SOURCE OF THE SMOPKE AND BE CERTAIN A SAFE CONDITION EXISTS.

MAINTENANCE

BATTERY REPLACEMENT

If tamper resist has been used, refer to Figure 8 in Section 3 for alarm removal of battery will render the unit inoperative.

WARNING: Alarm will not attach to mounting bracket unless battery is installed. Removal of battery will render the unit inoperative.

To replace the battery, remove the alarm from the mounting plate by rotating the alarm in the direction of the "OFF" arrow on the cover (see Section 3, Figure 4).

The Smoke Alarm is powered by a 9V alkaline battery (Carbon zinc batteries may also be used). A fresh battery should last for one year under normal operating conditions. This alarm has a low battery monitor circuit that will cause the alarm to "chirp" approximately every 30-40 seconds for a minimum of thirty (30) days when the battery gets low. Replace the battery when this condition occurs.

USE ONLY THE FOLLOWING 9 VOLT BATTERIES FOR SMOKE ALEMS REPLACEMENT:

Carbon Since Type:	Alkaline Type
EVEREADY 1222;	ENERGIZER 522, GOLD PEAK 1604A;
GOLD PEAK 1604P or 1604S	DURACELL MN1604, MX1604;
	PANASONIC 6AM6, 6AM-6, 6AM-6PI,
	6AM6X, AND 6LR61 (GA)

NOTE: Do not use lithium batteries in this unit.

NOTE: WEEKLY TESTING IS REQUIRED.

WARNING! USE ONLY THE BATTERIES SPECIFIED. USE OF DIFFERENT BATTERIES MAY HAVE A DETRIMENTAL EFFECT ON THE SMOKE ALARM.

NOTE: CONSTANT EXPOSURES TO EXTREME TEMPERATURES OR HUMIDITY MAY REDUCE BATTERY LIFE.

CLEANING YOUR ALARM

YOUR ALARM SHOULD BE CLEANED AT LEAST ONCE A YEAR

To clean your alarm, remove it from the mounting bracket as outlined in the beginning of this section. You can clean the interior of your alarm (sensing chamber) by using your vacuum cleaner hose and hacuuming through the openings around the perimeter of the alarm. The outside of the alarm can be wiped with a damp cloth. After cleaning, reinstall your alarm. Test your alarm by using the test button.

7.

LIMITATIONS OF SMOKE ALARMS

WARNING: PLEASE READ CAREFULLY AND THOROUGHLY

• Fire-warning equipment for residential occupancies are capable of protecting about half of the occupants in potentially fatal fires. Victims are often intimate with the fire, too old or too youg, or physically or mentally impaired such that they cannot escape even when warned early enough that escape should be possible. For these people, other strategies such as protection-in-place or assisted escape or rescue would be necessary.
• Leading authorities recommend that both ionisation and photoelectric smoke alarms be installed to help insure maximum detection of the various types of fires that can occure within the home. Ionisation sensing alarms may detect invisible fire particles (associated with fast flaming fires) sooner than photoelectric alarms. Photoelectric sensing alarms may detect visible fire particles (associated with slow smoldering fires) sooner than ionisation alarms.
• A bettery powered alarm must have a battery of the specified type, in good condition and installed properly.
• AC powered alarms (without battery backup) will not operate if the AC power has been cut off, such as by an electrical fire or open fuse.
• Sotrage and Transport Coditions: -20°C to +60°C, 5-95%Rh (non-condensing)
• Smoke alarms must be tested regularly to make sure the batteries and alarm circuits are in good operating condition.
• Smoke alarms cannot provide an alarm if smoke does not reach the alarm. Therefore, smoke alarms may not sense fires starting in chimneys, walls, on roofs, on the other side of a closed door or on a different floor.
• If the alarm is located outside the sleeping room or on a different floor, it may not wake up a sound sleeper.
• The use of alcohol or drugs may also impair one's ability to hear the smoke alarm. For maximum protection, a smoke alarm should be installed in each sleeping area on every level of a home.
• Although smoke alarms can help save lives by providing an easrly warning of a fire, they are not a substitute for an insurance policy. Home owners and renters should have adequate insurance to protect their lives and property.

GOOD SAFETY HABITS

DEVELOPE AND PRACTICE A PLAN OF ESCAPE

• Make a floor plan indicating all doors and windows and at least two (2) escape routes from each room. Second story windows may need a rope or chain ladder.
• Have a family meeting and discuss your escape plan, showing everyone what to do in case of fire.
• Determine a place outside your home where you can all meet if a fire occurs.
• Familiarize everyone with the sound of the smoke alarm and train them to leave your home when they hear it.
• Practice a fire drill every six (6) months, including fire drills at night. Ensure that small children hear the alarm and wake up when it sounds. They must wake up in order to execute the escape plan. Practice allows all occupants to test your plan before an emergency. You may not be able to reach your children. It is important they know what to do.
• Install and maintain fire extinguishers on every level of the home and in the kitchen, basement and garage. Know how to use a fire extinguisher prior to an emergency.
• Current studies have shown smoke alarms may not awaken all sleeping individuals, and that it is the responsibility of individuals in the household that are capable of assisting others to provide assistance to those who may not be awakened by the alarm sound, or to those who may be incapable of safely evacuating the area unassisted.
• There are situations where a smoke alarm may not be effective to protect against fire. For instance:
• Smoking in bed.
• Leaving children unsupervised.
• Cleaning with flammable liquids, such as gasoline.
• Fires where trhe victim is intimate with a flaming initiated fire; for example, when a person's clothes cath fire while cooking.
• Fires where the smoke is prevented from reaching the detector due to a closed door or other obstruction.
• Incendiary fires where the fire grows so rapidly that an occupant's egress is blocked even with properly located detectors.

8.

WARRANTY/SERVICE

FIVE YEAR LIMITED WARRANTY

KIDDE SAFETY EUROPE LTD warrants to the original purchaser that the enclosed smoke alarm (but not the battery) will be free from defects in material and workmanship or design under normal use and service for a period of five years from the date of purchase. The obligation of KIDDE SAFETY EUROPE LTD under this warranty is limited to repairing or replacing the smoke alarm or any part which we find to be defective in material, workmanship or design, free of charge to the customer, upon sending the smoke alarm with proof of date of purchase, postage and return postage prepaid, to Warranty Service Department, Kidde Safety Europe Ltd, Ash House, Littleton Road, Ashford, TW15 1TZ, UK

This warranty shall not apply to the smoke alarm if it has been damaged, modified, abused or altered after the date of purchase or if it fails to operate due to improper maintenance or inadequate A.C. or D.C. elecrical power.

THE LIABILITY OF KIDDE SAFETY EURAOPE LTD OR ANY OF ITS PARENT OR SUBSIDIARY COPORATIONS ARISING FROM THE SALE OF THIS SMOKE ALARM OR UNDER THE TERMS OF THIS LIMITED WARRANTY SHALL NOT IN ANY CASE EXCEED THE COST OF REPLACEMENT OF SMOKE ALARM AND, IN NO CASE, SHALL KIDDE SAFETY EUROPE LTD OR ANY OF ITS PARENT OR SUBSIDIARY CORPORATIONS BE LIABLE FOR CONSEQUENTIAL LOSS OR DAMAGES RESULTING FROM THE FAILURE OF THE SMOKE ALARM OR FOR BREACH OF THIS OR ANY OTHER WARRANTY, EXPRESS OR IMPLIED, EVEN IF THE LOSS OR DAMAGE IS CAUSED BY THE COMPANY'S NEGLIGENCE OR FAULT.

This warranty does not affect your statutory rights.

Manufactured by Kidde

For service return to: Kidde Safety Europe Ltd

Ash House, Littleton Road, Ashford, TW15 1TZ, UK

Freephone (UK) 0800 917 0722; (Ireland) 1 800 818 601

Internet: www.kiddesafetyeurope.co.uk

Manufactured in China
